LoRaWAN Water Quality CI- Ion Sensor with Automatic Temperature Compensation

LoRaWAN Water Quality CI- Ion Sensor with Automatic Temperature Compensation

xiamen ZONEWU This is a power-saving LoRaWAN water quality CI- chloride ion sensor, which belongs to wireless networking devices. It can adjust data based on temperature by itself, not afraid of light interference, and can transmit data over long distances using LoRaWAN protocol. It can measure data in real time and send it out immediately, making it particularly suitable for long-term monitoring of water quality

  • نموذج المنتج :

    LW115-CI-
  • وضع إمداد الطاقة :

    Battery or External DC
  • تكرار :

    CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4
  • إصدار ماك :

    LoRaWAN 1.0.3
  • وضع :

    OTAA Class A/C
  • وزن :

    150g

 LoRaWAN Water Quality CI-  Ion Sensor with Automatic

Temperature Compensation



xiamen ZoneWu LoRaWAN Water Quality CI- Ion Sensor can wirelessly measure the amount of chloride ions in water using LoRaWAN.

xiamen ZoneWu LoRaWAN water Quality CI-  Ion Sensor Features:



This sensor can automatically calibrate the measurement data according to temperature changes, regardless of whether it is hot or cold, and the measured data is more reliable



With its ability to automatically compensate for temperature, it is not worried about environmental changes and can function stably in different environments



Compared to devices without this function, it measures ion concentration more accurately and has significantly higher precision



It is particularly convenient to connect with LoRaWAN collectors, just plug in the aviation plug, the connection is tight and not loose, and there is no problem with signal transmission



Once connected, wireless communication is sufficient without the need for wired connections. Data transmission is lightning fast, convenient, and user-friendly



It can detect and analyze unqualified industrial wastewater hydration, whether surface water has dried up, the safety of drinking water, the quality of seawater, and how to control ion concentration in industrial production



Product Parameters



Power Supply 12/24VDC
Weight 150g
Operating Temperature 0~40℃
Measuring Range

0-100mg/L

Ionic sensors are more susceptible to interference from

other ions in the water

and can easily cause membrane head failure. Please

purchase with caution !

Measurement Error ±5%FS(25℃)
Resolution Ratio 0.01mg/L
Temperature measurement range

0~50℃,Resolution Ratio:0.1℃

(When manually compensating for temperature, it is set to 25 ℃ by default.)

Probe usage cycle 3-6 months
Pressurization 0.6Mpa

Transmitter

Line length

Default 5m (other lengths can be customized)

Frequency

CN470/IN865/EU868/RU864/US915/AU915/

KR920/AS923-1&2&3&4

Mode OTAA  Class A/C
Reporting cycle 5min(Default )

Communication Protocol

Equipment information

(Reference)

LoRaWAN,LoRa TDMA Networking

AppEUI:0000000000000001

DevEUI:aaaa202404150001

AppKey:00001111222233334444555566667777

MAC Version:LoRaWAN 1.0.3

Product Applications

1.Sensitive perception: able to quickly detect changes in chloride ion concentration in water

2.Accurate measurement: It can accurately determine the specific amount of chloride ions.

3.Durable and resistant: The environment changes little, and it can be used for a long time without any problems

4.Quick response: You can quickly provide feedback on the situation of chloride ions.

5.Small in size: easy to install anywhere, just place it wherever you want.

6.Easy to maintain: It is easy to maintain and can save a lot of money on repairs and maintenance.

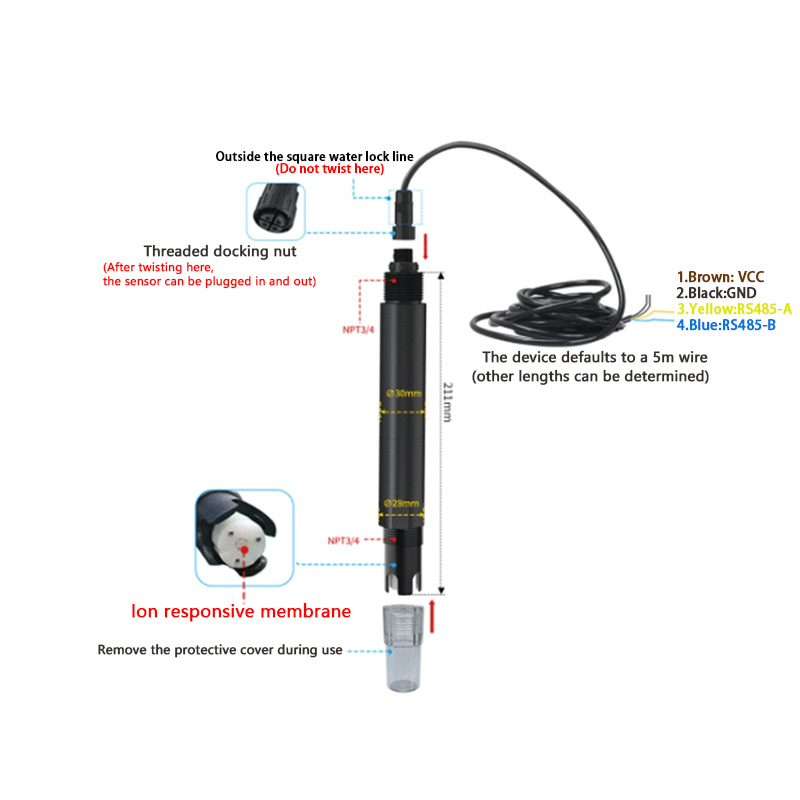

CI- Ion Transmitter Size and Installation

  1.Submerged installation: The lead wire of the equipment is passed through

the waterproof pipe, and the 3/4 thread on the top of the equipment is connected

with the 3/4 thread of the waterproof pipe with raw material tape.Make sure that

the top of the equipment and the equipment lines are free of water.

2. Pipe Installation: Connect to the pipe through the 3/4 thread of the device.

Detailed Images



Common knowledge of  CI-   Ion


What is chloride ion? What impact does it have on water quality?
Chloride ions are common charged particles in water, mainly derived from table salt (sodium chloride), dissolved seawater, or industrial pollutants. When there are too many chloride ions in water, it will become salty and corrosive, which not only affects the taste but may also corrode pipelines; If excessive in natural water bodies, it may damage the living environment of aquatic organisms, such as causing an imbalance in osmotic pressure for fish.


Why measure chloride ions in water?
Chloride ion concentration is one of the important indicators for judging the quality of water:
Excessive chloride ions in drinking water may indicate contamination of the water source (such as industrial wastewater or seawater backflow);
Excessive chloride ions in industrial water can corrode equipment;
Abnormal chloride ions in natural water bodies may indicate ecological imbalance and require timely investigation of the cause.


How many chloride ions are considered 'excessive' in water?
Strictly speaking, there is no unified "limit value", but there are reference ranges for different scenarios:
Generally, water treatment plants control chloride ions below 250 milligrams per liter (not salty to drink);
The chloride ions in natural river water are usually below 100 milligrams per liter, and exceeding 500 milligrams per liter may cause discomfort to aquatic organisms;
If water becomes like "saltwater" (such as chloride ions exceeding 1000 milligrams per liter), it is basically not suitable for direct use.


Is there a safety standard for chloride ions in drinking water?
The limits recommended by the World Health Organization (WHO) and national health standards are as follows:
Safety limit: 250 milligrams per liter (equivalent to 0.25 grams of salt per liter of water, with a light taste);
Warning limit: 500 milligrams per liter (at this time, the salty taste of the water is obvious, and long-term consumption may have an impact on sensitive populations).
When the alert value is exceeded, it is necessary to check whether the water source is contaminated or if salt has penetrated.



Application Scenarios

Aquaculture

Monitor the calcium ion concentration of aquaculture bodies to ensure the health of aquaculture organisms and the stability of water quality.



Seawater Monitoring

Monitoring the concentration of calcium ions in seawater is conducive to marine ecological research and the regulation of seawater aquaculture.

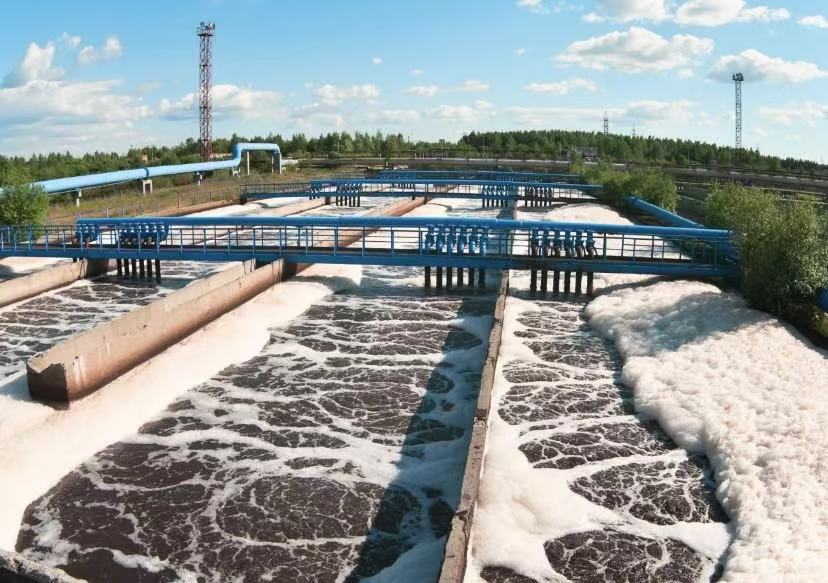

Industrial Wastewater

Monitoring the concentration of calcium ions in industrial wastewater helps with wastewater treatment and achieving compliance with discharge standards.

FAQ
1.Are you manufacture?
A:Yes,we are Tranmitter manufacturer and exporter in China with more than 10 years of CE,ROHS,FCC,ISO and 11 patents experience.

2.Do you offer OEM services?

A:Yes,we can provide you with OEM services and design housings and logos.



3.DO you offer free samples?

A:Sorry,we don't offer free samples.After ordering in bulk,we will deduct the sample fee from the second order.



Why Choose ZONEWU

  • Professional IoT Sensor Manufacturer
    Specializes in R&D, production, and sales of IoT sensors with strong technical expertise
  • High Quality and Reliability
    Products certified with international standards (e.g., CE, RoHS), ensuring high quality and long lifespan.
  • Wide Range of Applications
    Products serve diverse industries such as water quality monitoring, environmental monitoring, and industrial automation, offering strong market adaptability.
  • Advanced Technology
    Utilizes cutting-edge communication technologies like LoRaWAN and NB-IoT for remote, low-power data transmission.
  • Customized Solutions
    Provides tailored products and OEM/ODM services to meet diverse application needs.
